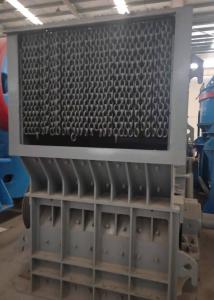

AC Motor Primary Crushing 75kw Impact Hammer Crusher

Name: AC Motor Primary Crushing 75kw Impact Hammer Crusher
Brand: Aowei
Price: 1 USD

China AC Motor Primary Crushing 75kw Impact Hammer Crusher wholesale

Brand Name : Aowei

Model Number : PFQ1108

Certification : CE, ISO

Place of Origin : China

MOQ : 1 SET

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5-10 Set/Month

Delivery Time : 5-7 days

Packaging Details : Standard Package

Condition : New

Processing Capacity : 50~100t/h

Max Feed Size : 300mm

Max Motor Power : 75kw

Motor type : AC Motor

Warrenty : 1 Year

Applicable Fields : Mainly used in sand and stone yard, mixing station, construction waste crushing and other fields

Applied Materials : Limestone, dolomite, construction garbage, granite, basalt, river pebbles and so on

Contact Now

Stone Crushing Machine Impact Hammer Crusher

1.Description

Impact Crusher is a newly developed series impact crusher with high efficiency. It has smart structure and can be applied to primary crushing, secondary and fine crushing of a variety of materials with compression strength less than 250Mpa. Impact crusher can be widely used for mainly used in sand and stone yard, mixing station, construction waste crushing and other industries.Applicable materials: limestone, dolomite, construction garbage crushing, granite, basalt, river pebbles, etc

2.Features

Powerful rotors

Sturdy welded structure
Wears parts can be replaced quickly
Quick and simple blow bar replacement thanks to the patented mounting system
Available with several different rotor versions depending on the application

Robust impact plates

Two versions: Monoblock casting, welded steel structure
Flexible configuration for any shredding application
Impact plates supported by durable, maintenance-free spring units

Large feed opening

Prevents material jams
Optimum use of crushing chamber even at maximum input size
High throughput rates
Excellent shredding results

Maintenance-friendly design

Durable, compact design
Easy access for maintenance

Optimized wear parts

Interchangeable parts reduce number of parts you need to keep in stock

3.Parameter

Model	Max. Feed Size(mm)		Discharge Size (mm)	Capacity (t/h)	Power (kw)
Model	<150MPa	<250MPa	Discharge Size (mm)	Capacity (t/h)	Power (kw)
PFQ1108	300	150	30	50~100	75
PFQ1110	400	200	30	80~150	110
PFQ1310	500	200	40	140~200	160
PFQ1313	500	250	40	180~260	200
PFQ1315	600	300	40	200~300	250
PFQ1320	600	300	40	300~400	2×160
PFQ1520	800	400	40	350~550	2×250
PFQ1823	1000	500	40	550~850	2×400
PFQ2223	1200	600	40	850~1200	2×560
